Automatic Conductor Deadend

Full-Tension Automatic Conductor Deadend for ACSR, AAC & AAAC Conductors

Automatic ConnectorsAutomatic DeadendACSR ConductorsAAC ConductorsAAAC ConductorsConductor Dead-EndingPrimary and Secondary Line Applications

FASTLINK Automatic Connectors include full-tension Automatic Deadend solutions for ACSR, AAC, and AAAC conductors. Color-coded, flared funnel guides simplify identification and installation, while an aluminum alloy shell and inhibitor-protected aluminum jaws provide corrosion resistance. Multiple bail options accommodate primary and secondary line applications.

Product Description

• Fastest method of deadending ACSR,AAAC and AAC Conductor.

• ANSI C119.4 Full Tension Class A Connectors (95% of conductor breaking strength unless otherwise noted)

• Color coded funnel guide for easy identification.

• Flared conductor funnel guide for ease installation.

• Alumium alloy shell and inhibitor protected,Alumium jaws assure corrosion resistance.

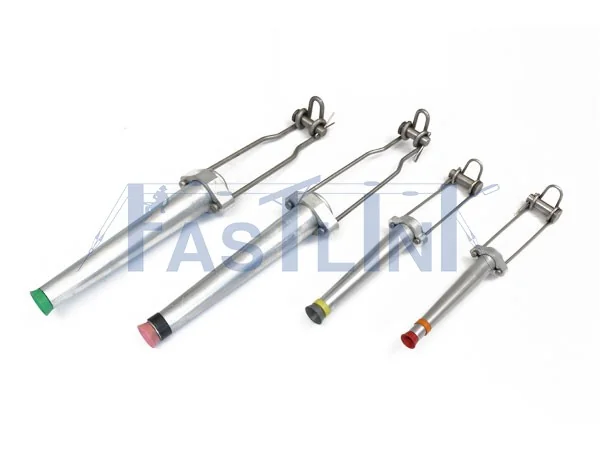

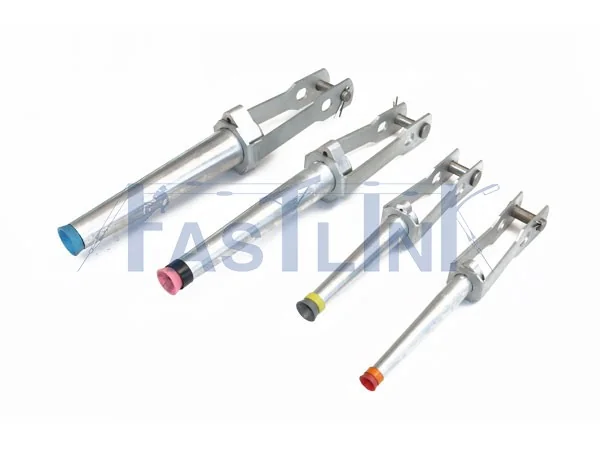

• Available with galvanized steel stirrup clevis or stainless steel Z bail for primary

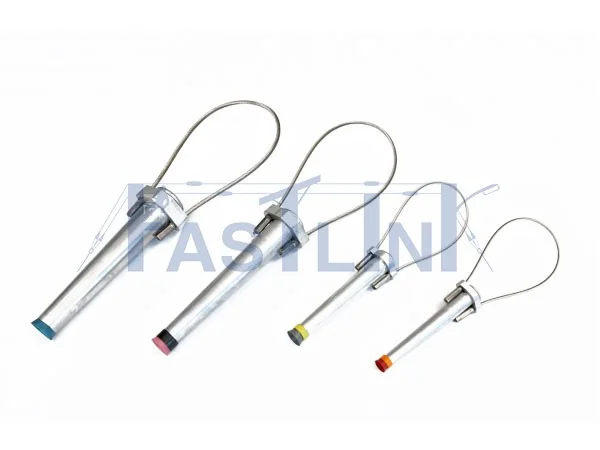

• Applications.Flexible stainless steel bails can be used on secondary applications.

Installation Video

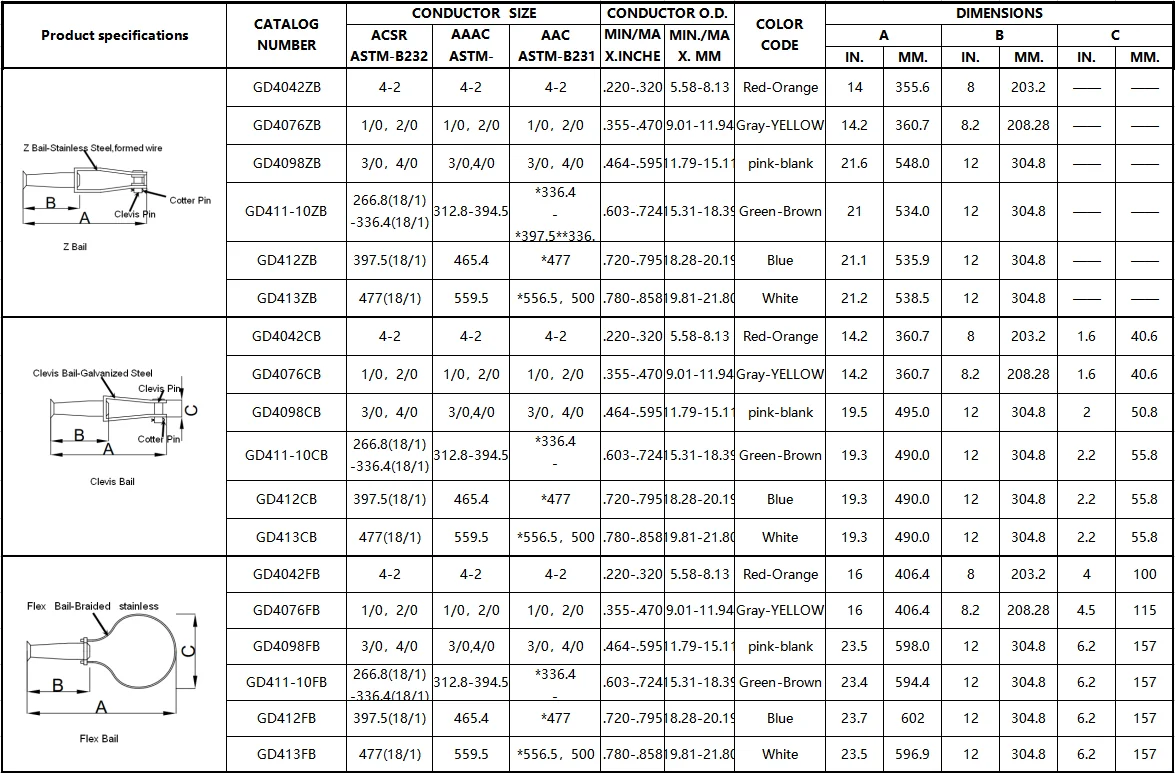

Technique parameter

Frequently Asked Questions

Which conductors can I use with your Automatic Conductor Deadend?

Our Automatic Conductor Deadend range is designed for ACSR, AAC, and AAAC conductors. To select the right model, send us your conductor type, size, and outside diameter. We can help match your requirements to the appropriate deadend and bail configuration.

How should I prepare the conductor before installation?

In our installation demonstration, we straighten the conductor end and clean it with a wire brush before insertion. These preparation steps help the conductor enter the automatic gripping mechanism properly. Please follow the installation instructions for your specific Automatic Deadend model, including the required insertion depth.

What makes your Automatic Connectors corrosion-resistant?

Our Automatic Connectors feature an aluminum alloy body and high-strength aluminum jaws. The Automatic Deadend also uses inhibitor-protected jaws, while the installation video identifies a nylon guide cap and stainless steel internal components. These materials support corrosion resistance in outdoor applications.

Which bail options are available for your Automatic Deadend?

We offer galvanized steel stirrup clevis and stainless steel Z-bail options for primary applications, along with flexible stainless steel bails for secondary applications. Tell us your installation requirements so we can help you choose the appropriate configuration.

What is the rated holding strength of your Automatic Deadend?

Our Automatic Deadend is rated for 95% of the conductor’s breaking strength unless otherwise specified, as stated in our ANSI C119.4 Full Tension Class A product specification.
