Fastlink Adjustable Wire Joiner

Adjustable Wire Connector for Splicing, Anchoring and Tensioning Smooth Wire

Smooth wire joiningWire-to-wire splicingEnd-post anchoringPole terminationLoop anchoringWire tensioningWire adjustmentWire repairSupport wire connectionTension wire installation

FASTLINK Adjustable Wire Joiner is a reusable mechanical wire connector designed for wire splicing, end-post anchoring and tension adjustment. Two wires can be inserted from opposite directions to create a direct inline connection, or a single wire can be wrapped around a pole or end post and returned into the connector to form a secure termination. A dedicated release tool allows the connection to be opened and repositioned when required, while the FASTLINK tightening tool can be used to increase wire tension after installation.

Product Description

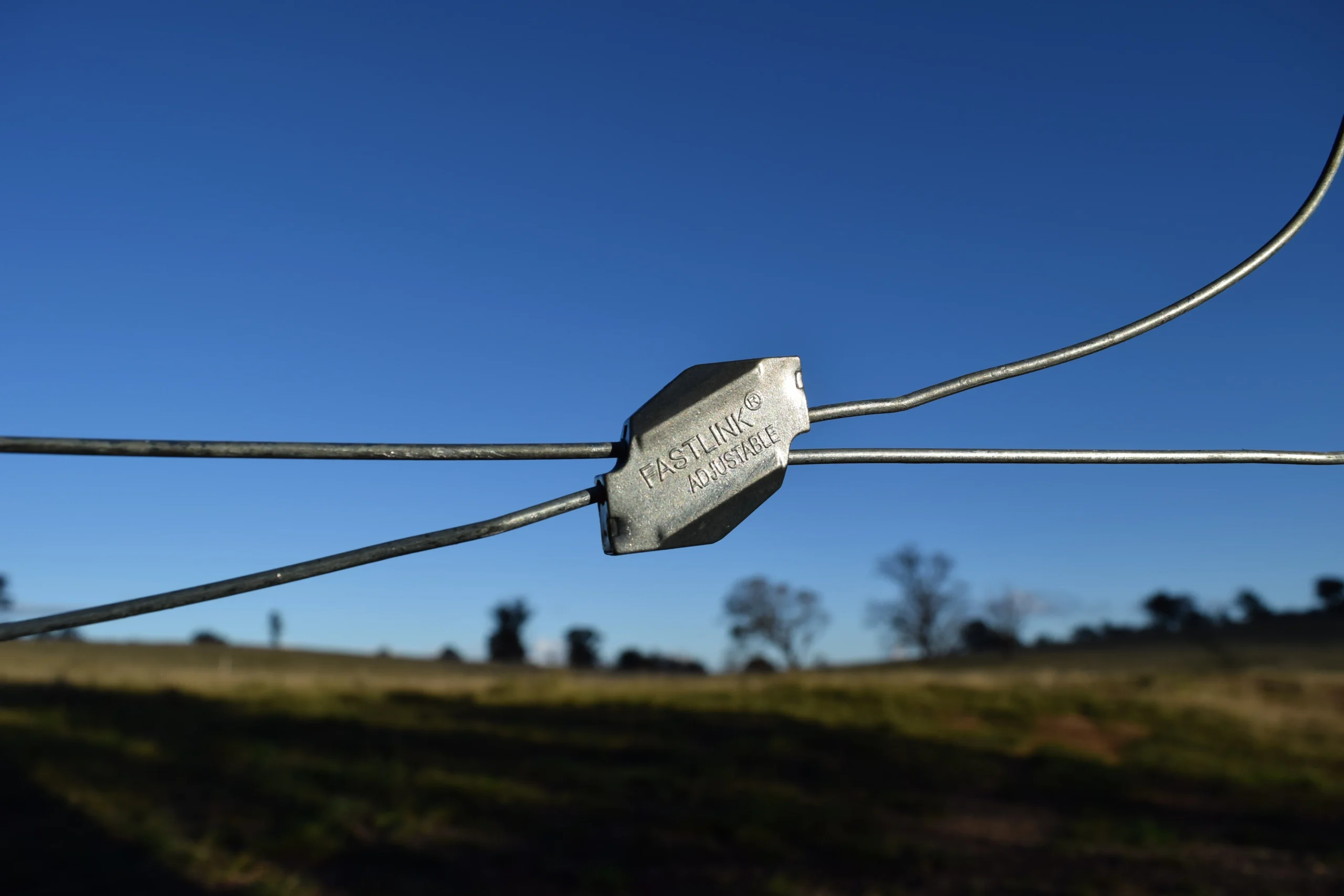

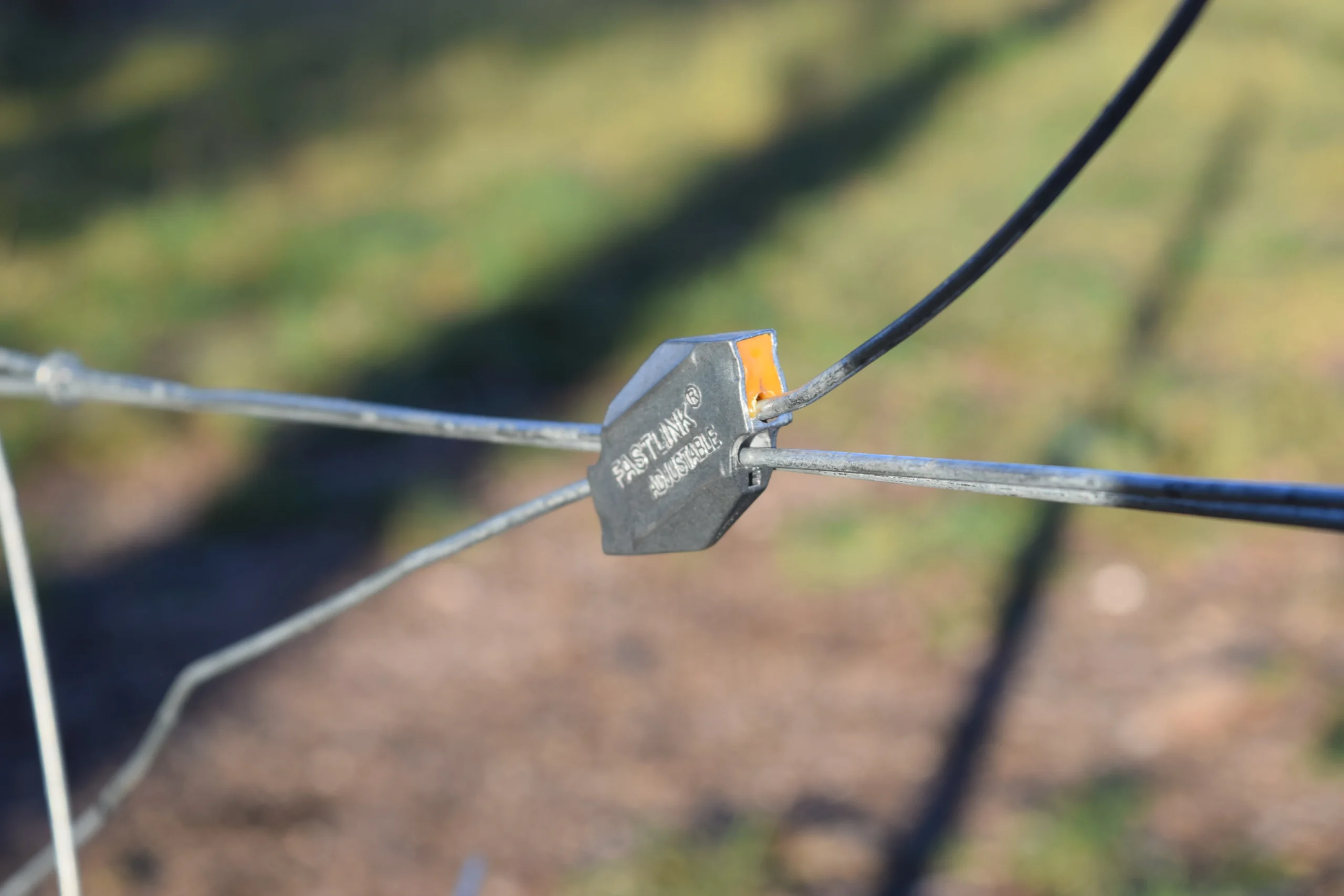

Two-Way Wire Joining: Two wires can be inserted into the FASTLINK Adjustable Wire Joiner from opposite directions to create a compact inline mechanical connection. This allows damaged, extended or separated wire sections to be joined without complicated connection procedures.

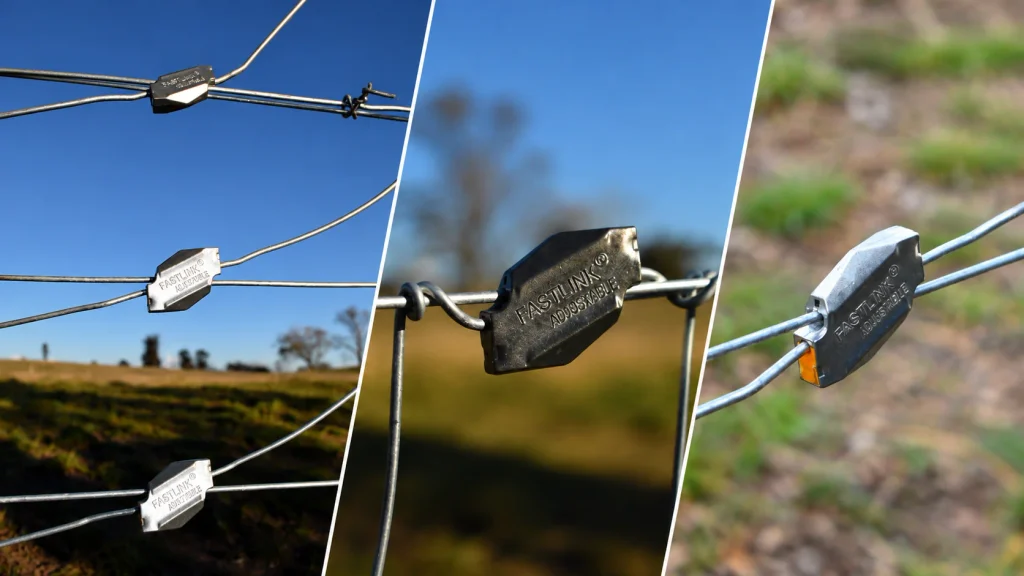

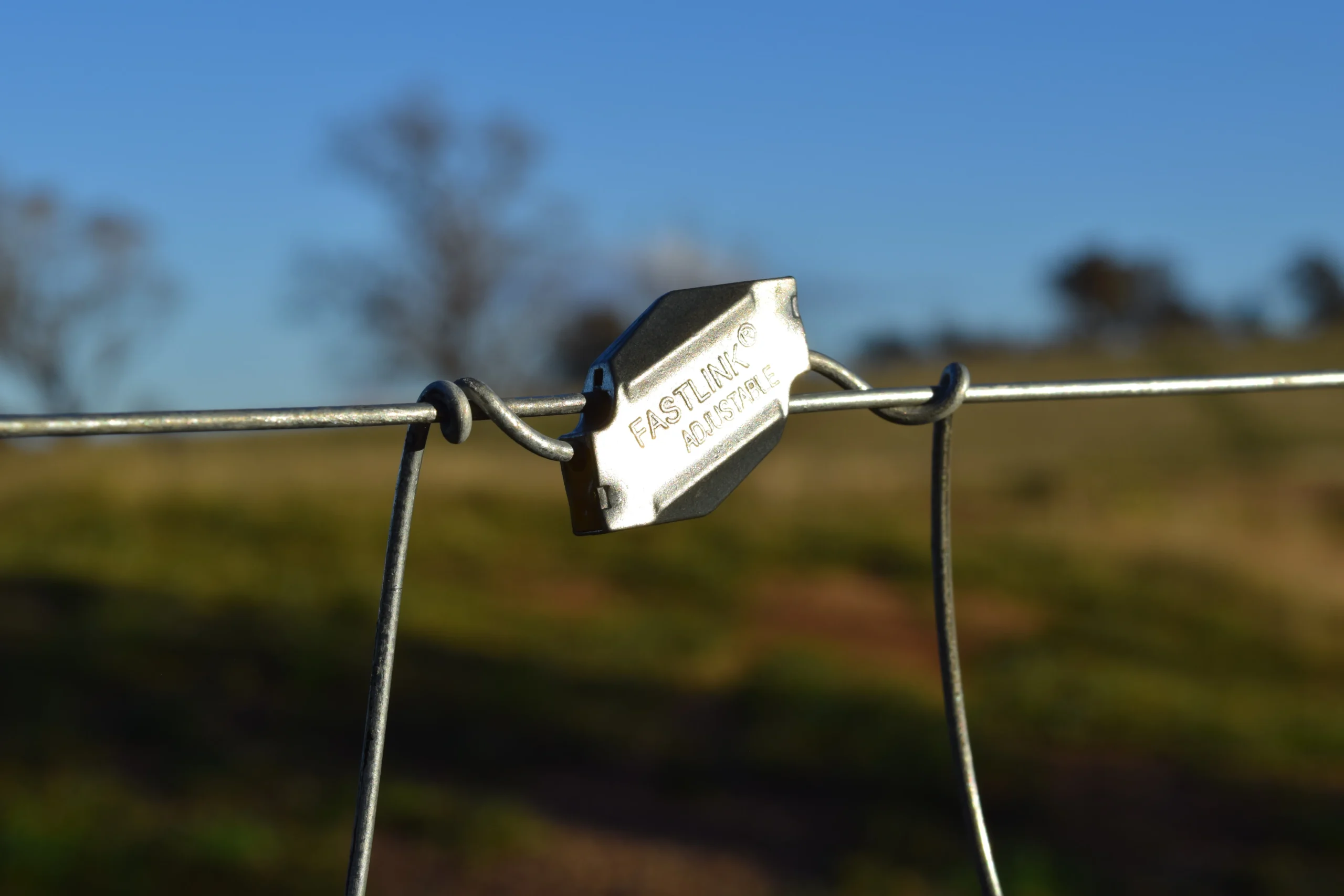

End-Post and Anchor Termination: The connector can also be used to create an adjustable wire termination at a pole, anchor or end post. The wire is wrapped around the support point and inserted back into the second opening of the connector, forming a secure loop-type termination.
Releasable and Repositionable Connection: A dedicated release tool can be inserted into the connector to disengage the internal gripping mechanism, allowing the installed wire to be removed or repositioned when adjustment is required.
Adjustable Wire Tension: After the wire has been installed, the FASTLINK tightening tool can be used to pull the wire further through the connector and increase tension, making final positioning and tension adjustment easier during installation.
Simple Push-In Installation: The connector is designed around a straightforward insert-and-secure installation process. No complex wire preparation is required for the basic connection, helping installers complete joining and anchoring work more efficiently.

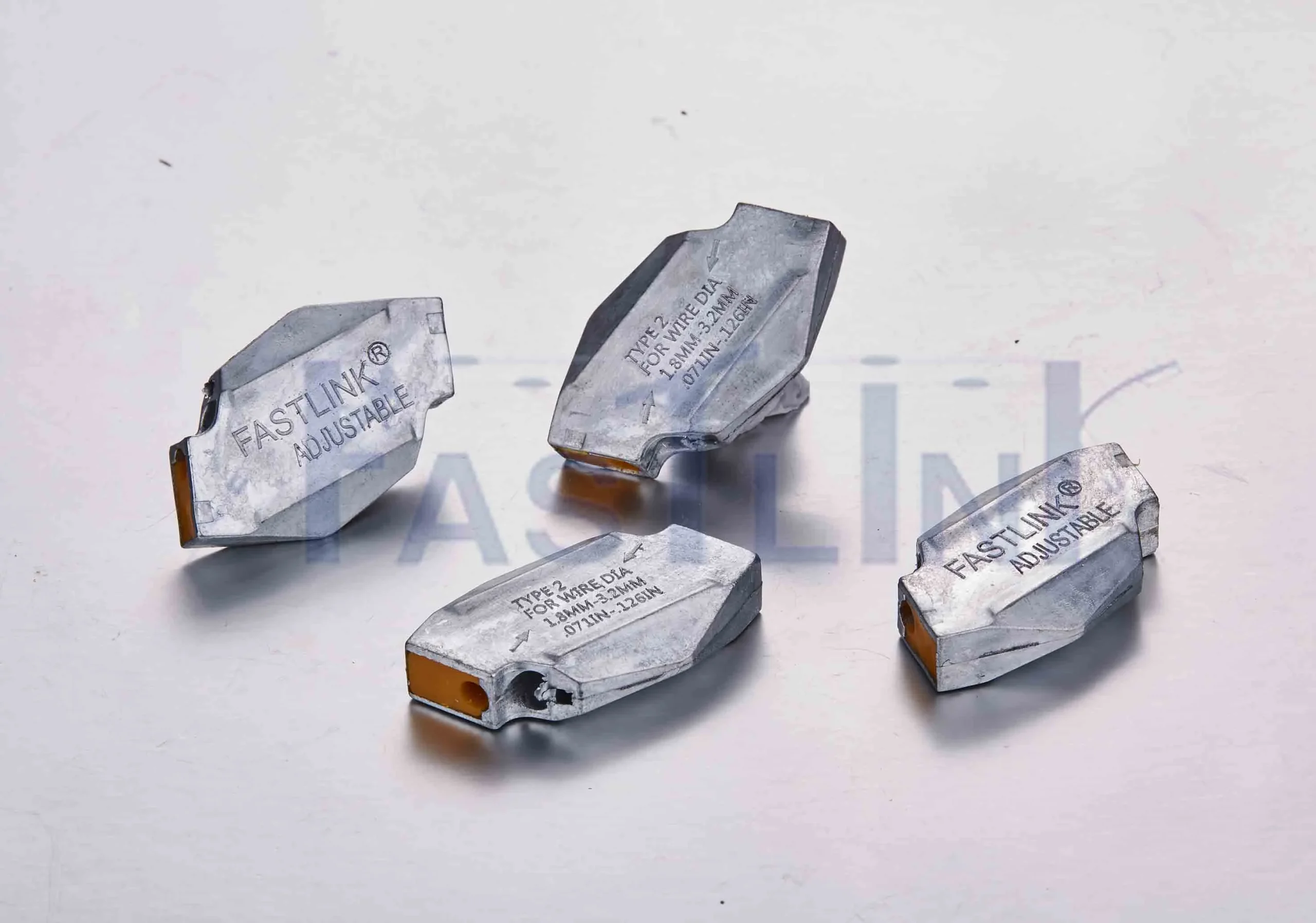

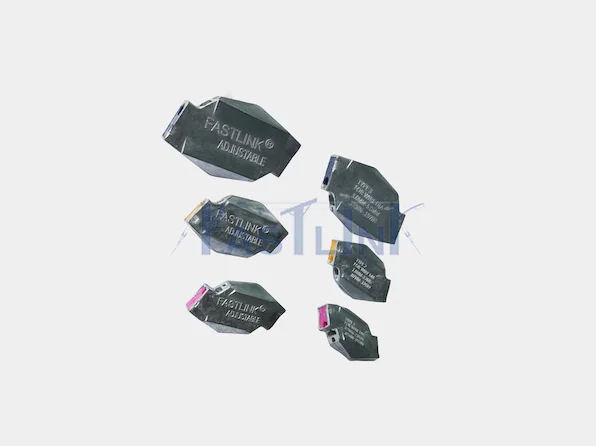

Multiple Wire Ranges Available: FASTLINK Adjustable Wire Joiners are available in multiple sizes to accommodate different wire diameters. The appropriate connector size should always be selected according to the actual wire diameter and application requirements.

Application

Installation Video

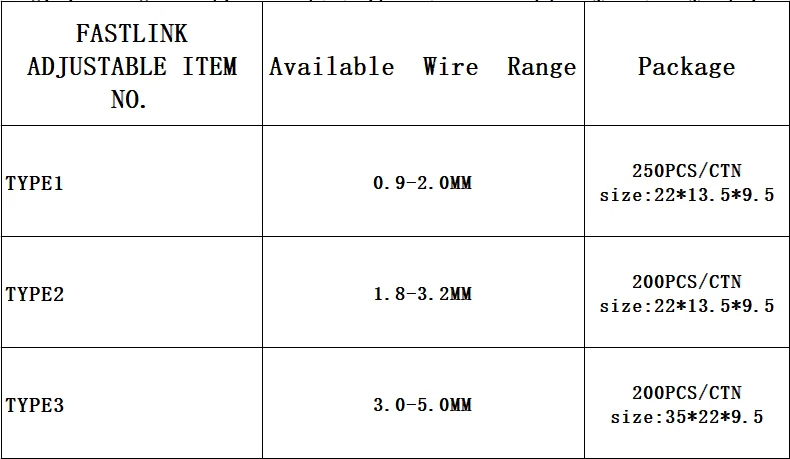

Technique parameter

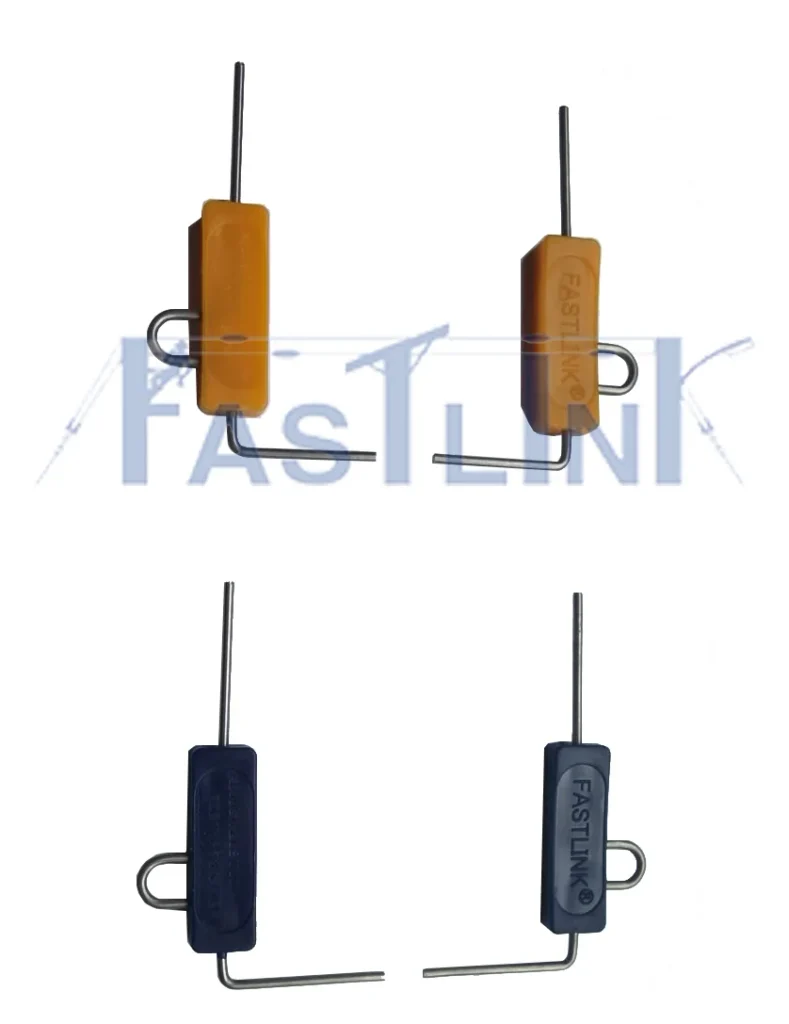

Adjustable Tool

Frequently Asked Questions

What is a FASTLINK Adjustable Wire Joiner?

A FASTLINK Adjustable Wire Joiner is a reusable mechanical connector used to join, anchor and tension compatible smooth wire. It can connect two separate wires in a straight line or create an adjustable termination by wrapping a wire around a pole or end post and inserting it back into the connector.

How do you connect two wires with a FASTLINK Adjustable Wire Joiner?

Insert one wire into one side of the connector and insert the second wire from the opposite direction. Once both wires are correctly positioned, the internal gripping mechanism holds them against reverse movement, creating an inline wire connection. The correct connector size should be selected according to the wire diameter.

Can the FASTLINK Adjustable Wire Joiner be used at an end post or anchor point?

Yes. The connector can be used as an adjustable termination at an end post, pole or anchor point. The wire is passed around the support and then inserted back into the second opening of the connector. This creates a loop around the support while allowing the wire position and tension to be adjusted during installation.

Can a FASTLINK Adjustable Wire Joiner be released after installation?

Yes. The connection can be released with the dedicated FASTLINK release tool. The tool is inserted into the release opening and pushed inward to disengage the gripping mechanism, allowing the wire to be removed or repositioned when adjustment is required.

How do you increase wire tension after installing the connector?

After the wire has been positioned in the FASTLINK Adjustable Wire Joiner, a dedicated FASTLINK tightening tool can be used to pull the wire further through the connector. This allows the installer to increase tension and fine-tune the final wire position without rebuilding the entire connection.
